Specification

  • 80W CO2 DC laser tube
  • Bed size of 650 x 420mm
  • Knife-edge bar bed (adjustable height up to 200mm), with accurate, reliable mechanics.
  • Red dot pointer
  • Air assist pump
  • Sealed electronic water cooling unit
  • Laser design software
  • On-site installation
  • Unlimited phone support
  • Full operator training & On-site warranty

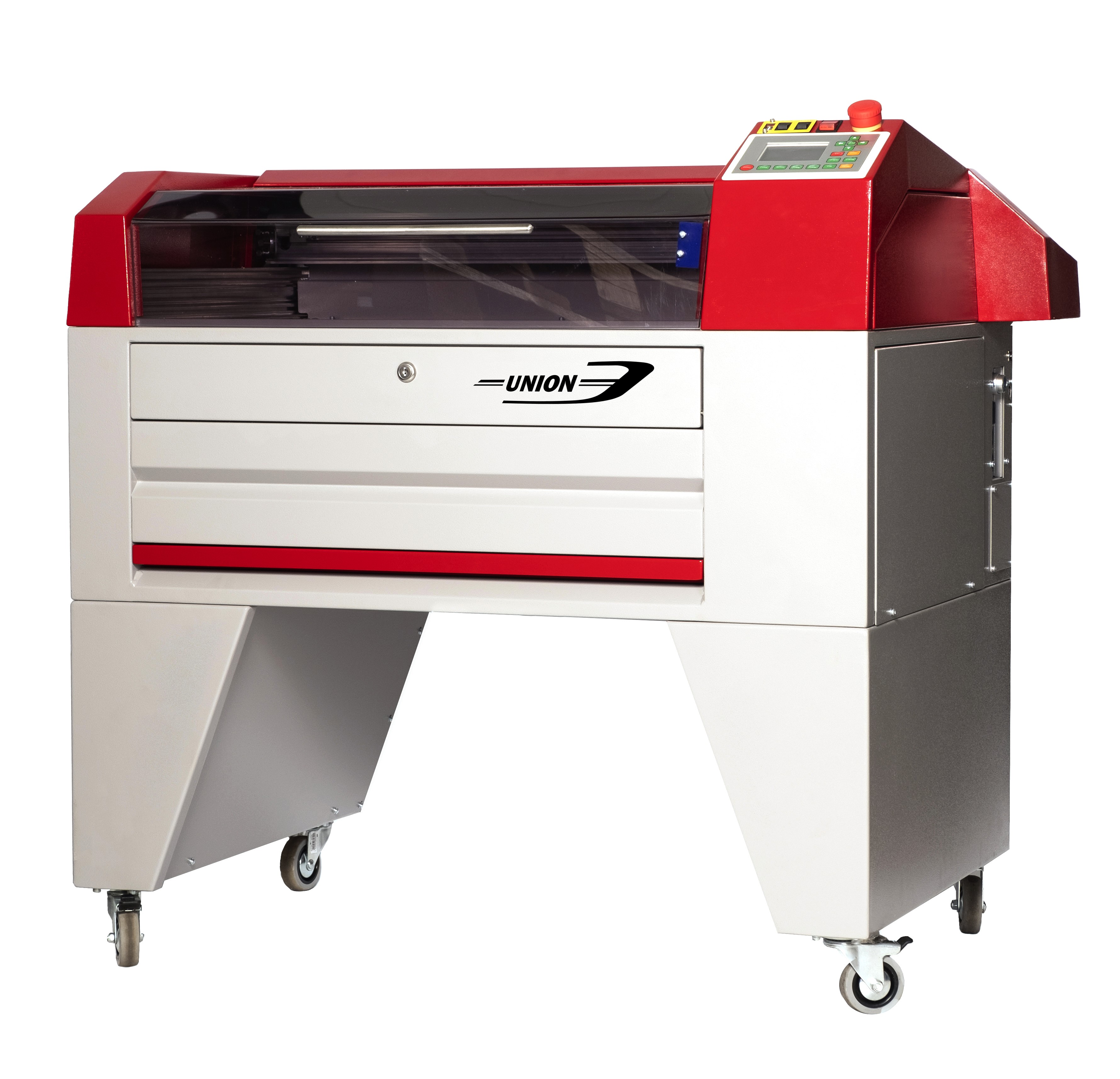

Construction:

Robust metal construction with polycarbonate lid

What's Included:

  • Control Interface 32 BIT DSP.
  • Memory: 32 M flash memory in the machine for job storage.
  • Work Size: 650 x 420 mm with front/back through doors.
  • Up/Down Work Table (bed): 200 mm height adjustable.
  • Laser Tube Type: [DC laser] CO2 sealed glass DC.
  • Available Laser Power: [DC laser] 50W CO2.
  • Speed Range: 0.1 mm/sec to 800 mm/sec.
  • Software Resolution: 20,000 DPI.
  • Electronic Precision: < 0.01 mm.
  • Angle Accuracy: > 0.1º
  • Repeatability: > 0.1 mm.
  • Software: Easycut 5.4
  • Accepted File Formats: HPGL, BMP, DXF, AI, G-Code.
  • Interface: USB2 Driver Type: X and Y micro step motor drives.
  • External Fume Extraction Unit and Water Chiller

Colour & Weight:

Red/Grey – 110KG Laser – 60KG Extraction unit

Dimensions:

  • W1450mm x D660mm x H9550mm – Laser Cutter
  • W465mm x D528mm x H1070mm - Extraction unit

Power:

240v / 1 phase / 50Hz for both Laser Cutter and Fume Extraction System

Installation:

Floor standing castor mounting. Twin 13 amp socket outlets

Warranty:

12 month Parts and Labour Warranty and subject to an annual HME accredited engineer inspection

General Maintenance:

12 monthly safety tests : 14 monthly LEV test on extraction unit. Refer to User’s manual

Health & Safety Consideration:

BS4163 - 2021
